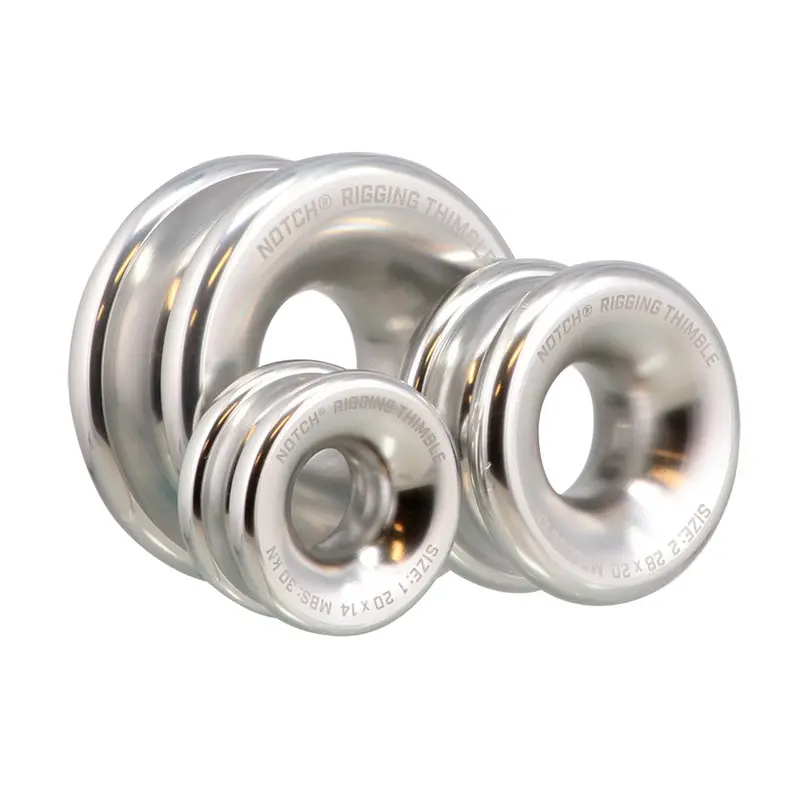

Notch High-Strength Rigging Thimbles For Arborist Use

Description

Notch Rigging Thimbles were designed by arborists and built by engineers. They are purpose-built for the arboriculture industry, with improvements over the original marine products on the market. Splice them into a sling for use as a rigging point or redirect.

Designed by arborists for arborists and built by engineers
• Minimum breaking strength tested in the worst case configuration scenario – and clearly marked on every thimble
• Wider rope groove to accommodate more appropriate sizes and types of rope for various sling configurations
• Bigger, gentler bend radius for running rope
• Non-anodized aluminium for extended life
• Interior diameter is specially sized in relation to the other Notch Rigging Thimbles for better retrieval and use with splices
• Effectively unbreakable in standard configurations on our 25,000lb horizontal proof test machine
• Lifetime wear guarantee – If at any point in time your rigging thimble shows a “groove” from normal use, send it back to us and we’ll replace it for free. (Does not cover dents, scratches, or the cost of splicing)

Size 1

• MBS: 30kN
• Sling Diameter: 20mm
• Rope Capacity: Up to 14mm

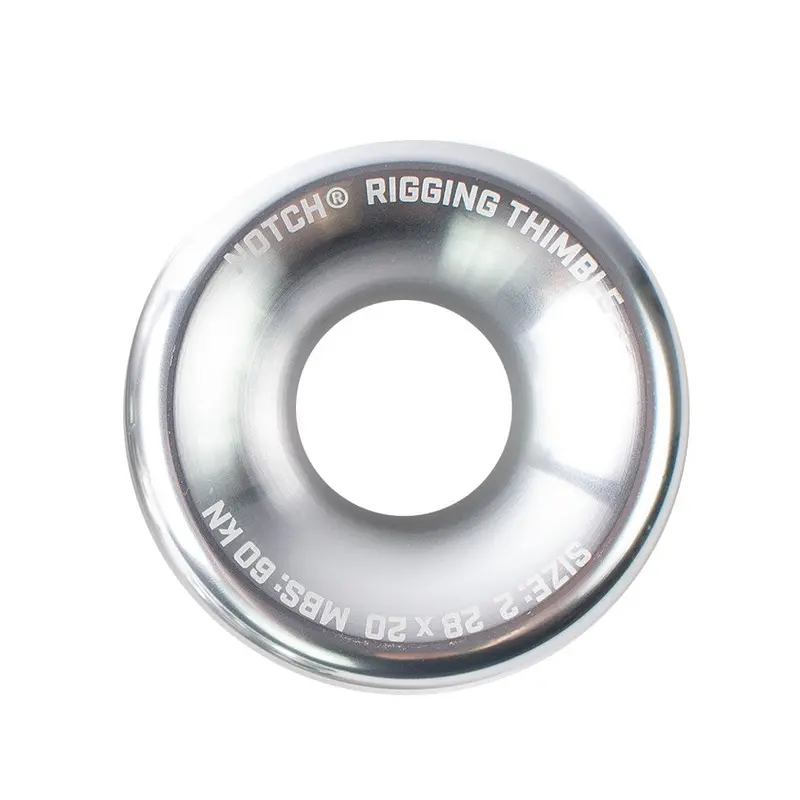

Size 2

• MBS: 60kN
• Sling Diameter: 28mm
• Rope Capacity: Up to 20mm

Size 3

• MBS: 98kN
• Sling Diameter: 38mm
• Rope Capacity: Up to 28mm
